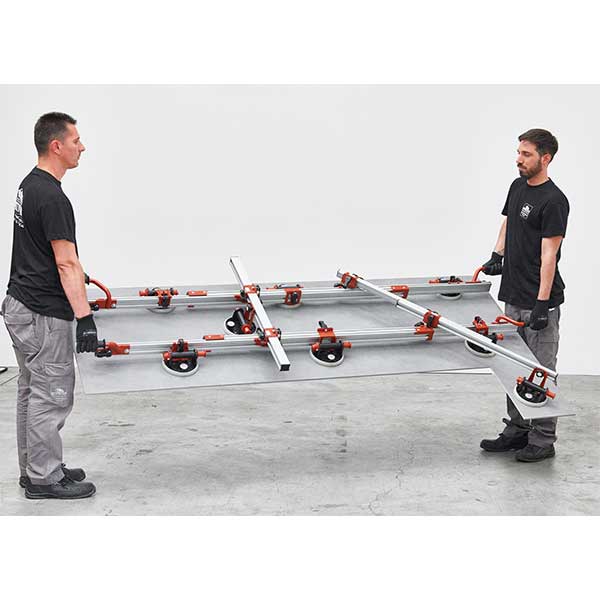

EASY-MOVE MkIV WITH RV175 SUCTION CUPS (VACUUM WITH GAUGE): ADJUSTABLE EXTENSION DEVICE FOR HANDLING LARGE FORMAT TILES UP TO 320 cm (10.5’) LENGTH with Crossbars

• Completely redesigned this 4th generation of Easy-Move frame for handling large format tiles offers functionality and performance never achieved before
• Weight reduced by over 25% compared to the previous version
• Equipped with the innovative RV175 vacuum suction cups (perfect for textured tiles) featuring vacuum gauge and stain-free rubber, both very easy to replace in case of need, and die-cast aluminum body
• Maximum safety thanks to the vacuum gauges (placed in protected position) which constantly indicates the degree of vacuum inside the cup. The pump system allows to restore/increase the vacuum at any time with the suction cup still in place/working
• The sliding between the main aluminum profiles is extremely fluid thanks to the anti-friction pads
• All suction cups (including the central ones) can be easily slid into any position along the profiles
• Available version with two variable-length telescopic crossbars (mini 90 cm / 35 ½”; max 160 cm/ 63”) to allow easy entry into the case/skid and adapt to slabs of any width
• Crossbars can be easily tilted at an angle (compared to the main profiles) so to adapt to even the most complicated slab layouts
• Each crossbar is equipped with a RV175 suction cup that can be moved along its entire length. The suction cup can be positioned both inside and outside the main profiles quickly and easily
• All sliding and movements are extremely fluid to quickly and easily adapt the frame configuration to the slab layout. Even the most complicated
• Tilting suction cups (+/- 5 °) to adapt to the inevitable bending of the slabs and guarantee the perfect grip in every situation. The system is particularly useful for textured slabs
• Suction cups are all positioned in line so to allow using EASY-MOVE MkIV also on reduced width slabs (minimum width 19 cm / 7 ½”)
• The 4 sliding handles provided with non-slip and stain-proof grommet result in best ergonomics and handling even for wall installation. Each handle equipped with soft rubber grip
• Maximum slab length 320 cm (10.5 feet); minimum 100 cm (3.3 feet)
• Massima lunghezza lastra: 320 cm, minima 100 cm
• Available version with crossbars (8 suction cups) or without (6 suction cups). Pair of crossbars and their suction cups also available as accessory
• Available as accessory the kit of 4 double handles to maximize ergonomics in case of use by 4 operators
• Equipped with plastic suction cups protections, use and maintenance manual.
